Trestles Ti:Sapphire laser with AOTF tuning

New Trestles-AOTF model use  TeO2 AOTF with pass-band resolution varied from 0.4 nm for 750 nm till 0.6 nm for 850 nm. The RF tuning range is 38 - 60 MHz , max drive power is 0.5 W. The AOTF is with diffracted beam pointing stability, so there is no need to use additional prism in the cavity. No any additional optics in the cavity is required.

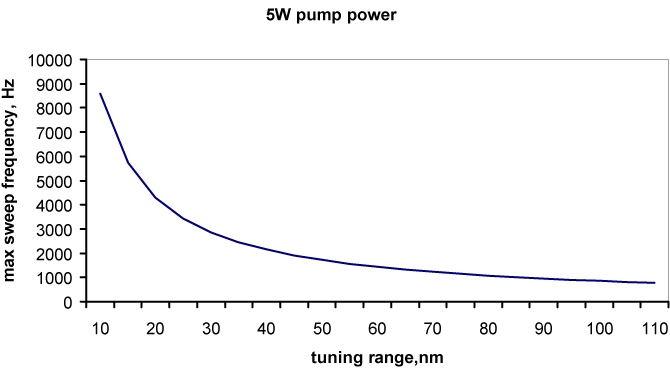

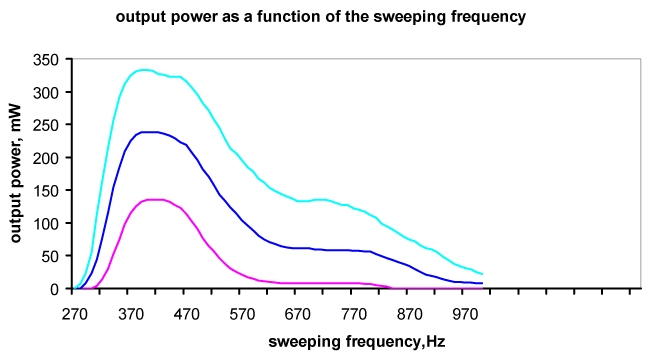

Trestles-AOTF system specifications: max tuning range ~ 100nm, max sweeping frequency ~ 1600 Hz , the pump threshold  1.45 W, slope efficiency 5.2%. Generation appeares from ~ 350 Hz .

Max tuning range was achieved in the middle of scanning speeds range,  near 900 Hz.

To receive additional information about AOTF option please email to sales@dmphotonics.com
