Custom Femtosecond Transient Absorption Data Acquisition Systems
High-repetition-rate white-light pump–probe spectroscopy with a tapered fiber
M. Punke, F. Hoos, C. Karnutsch, U. Lemmer, N. Linder, K. Streubel
(pdf)
Optics Letters 31 (8), p. 1157-1159 (2006)
We have realized a 76 MHz white-light differential transmission spectroscopy
system. The technique employs a Ti:sapphire laser oscillator TIF-50, Del Mar
Ventures, San Diego (current model name Trestles 50)
and a tapered fiber (NT&C, Marnheim, Germany) to generate a white-light
continuum spanning almost the full visible to near-infrared spectral range.
Using acousto-optical modulation and subsequent lock-in detection, transient
relative transmission changes as small as 10−5 are detected. The method is
applied to study the ultrafast gain dynamics of the active layer of a
vertical-external-cavity surface-emitting laser based on a multiple-quantum-well
structure.

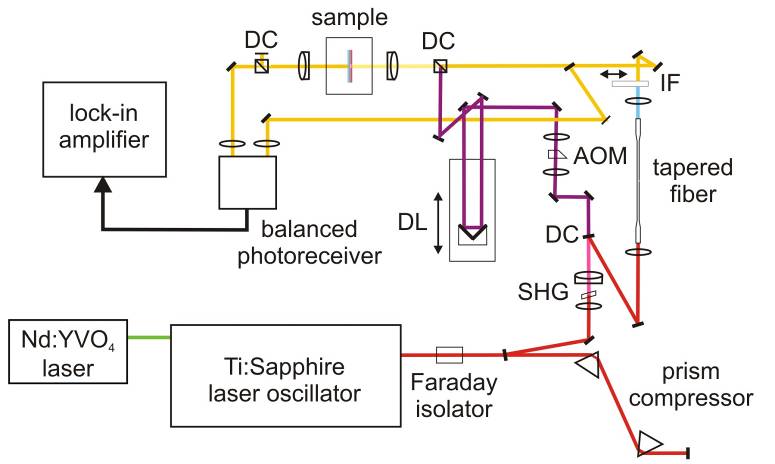

Fig.1 Schematic diagram of the experimental setup.
AOM, acousto-optic modulator; DC, dichroic mirror; DL,
delay line; IF, variable interference filter; SHG, second harmonic
generation.
Fig 2. Tapered fiber output spectra.
(Photograph of the beam after diffraction on a grating.)

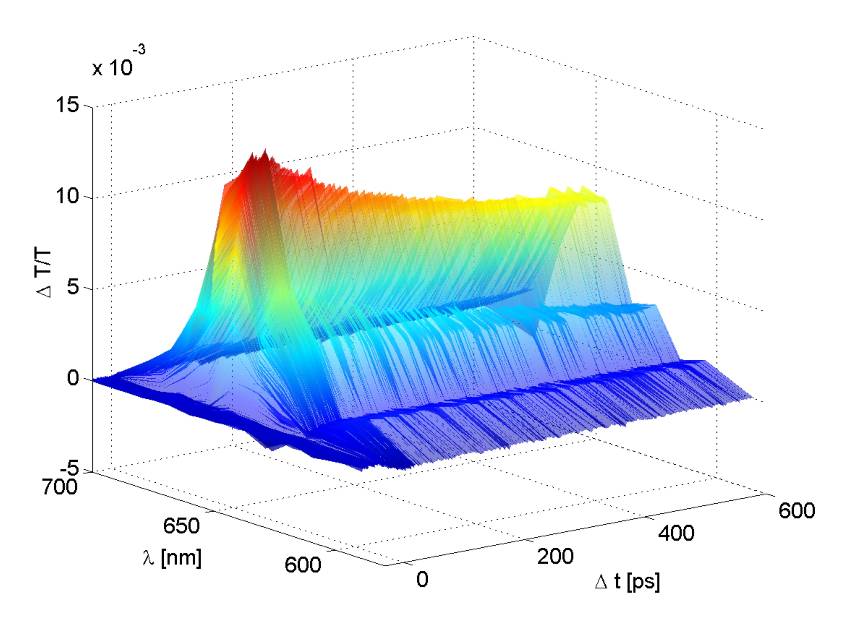

Fig. 3 Differential transmission measurements of the investigated AlGaInP MQW
structure.
Pump wavelength, 400 nm; pump pulse energy, 150 pJ.
 |
Martin Punke
Universität Karlsruhe (TH)
Light Technology Institute
Kaiserstr.12
D-76131 Karlsruhe
Martin.punke@lti.uni-karlsruhe.de
Martin Punke received the M.Sc in electrical engineering and information
technology from the University of Karlsruhe in 2003. In his master thesis he
worked on the realization of a femtosecond pump-probe setup utilizing a tapered
fiber for white-light generation. Since 2003, he has been working towards his
PhD degree at the Light Technology Institute of the
University of Karlsruhe. He is currently working on the combination of organic
semiconductor devices like OLEDs, organic photodiodes and lasers with
micro-optics for applications like biological sensor systems and optical
interconnects. |
