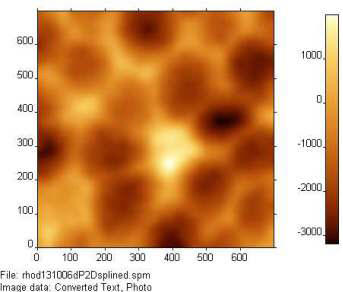

Fluorescence image of 100 nm - diameter TransFluoSpheres,
received under excitation at 532 nm and detection around 600 nm.

Del Mar Photonics nano-imaging gallery

High resolution MFM image of Seagate Barracuda 750Gb Hard Drive, ST3750640AS.
130 nm Ag nanoparticles immobilized on the metal surface, 3.6x3.6 um scan
Magnetic structure of surface domains in Yttrium Iron Garnet (YIG) film
Atomic resolution on HOPG obtained with the 100 micron scanner
NSOM Fluorescence image of 100 nm - diameter TransFluoSpheres
Near-field optical image of 250 nm - diameter gold beads, deposited onto a glass slide
AFM (topography) image of DNA (<3 nm thickness), deposited onto a glass slide
Near-field optical image of 100 nm - diameter polystyrene beads, deposited onto a glass slide

Send us your sample for nano-characterization!!!
