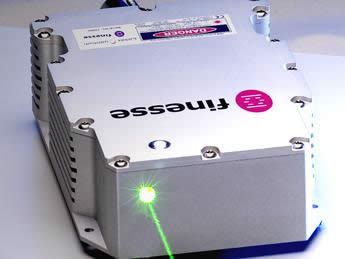

DPSS Laser Finesse from Laser Quantum is affordable pumping source for Trestles Ti:Sapphire lasers
The main technical information about Trestles Finesse laser you can find in the
brochure.
| Finesse 4W -
Finesse 5W -
Finesse 6W -
Finesse Tech Sheet -
fpu35 Main parameters of the Ti :Sapphire laser Trestles Finesse: Tuning range: 710-850 or 730-910nm Output power up to 500 mW with pump power up to 4W Output power up to 700 mW with pump power up to 6W Beam quality: TEMoo Polarization: linear horizontal Pulse duration <100 fs Repetition rate 80 MHz Laser Dimensions: length=565mm; width=436mm; height=192mm Wavelength tuning provided by motorized USB-controlled tuning slit Electromagnetic starter option. |
 |
Tuning range can be adjusted using custom optics. Typical
tuning curves for 4W pump laser are shown in the
brochure. With 4W pump laser and
long-wave mirrors set Trestles Finesse can be tuned up to 940nm. With 6W pump
laser wavelength tuning range going up to 980nm.
Trestles Finesse can be easily customized at the factory for required tuning
ranges and pulse duration.
Finesse lasers are used as a pump lasers for a) stand alone Ti:Sapphire oscillators Trestles, b) integrated one-box oscillator Trestles Finesse and c) a part of one box Ti:Sapphire oscillator/amplifier Teahupoo.
